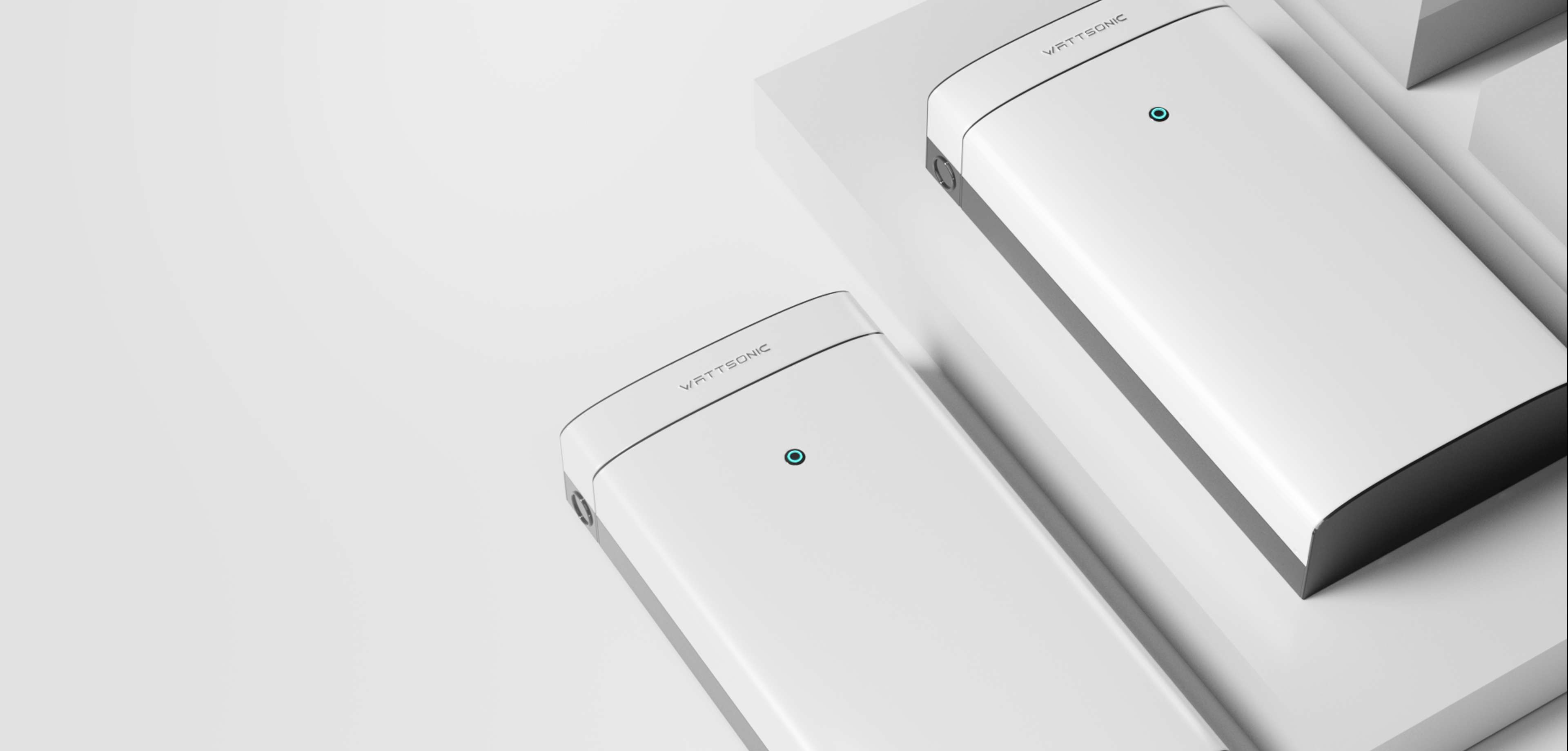

Wattsonic Li-LV Battery offers an option if you are looking for batteries to match your system. Approved by world leading inverters makes sure your batteries work well as soon as you plug them in without any more operations. Comprehensive battery design and considering protection function makes sure our battery can have a perfectly performance while a long life time.

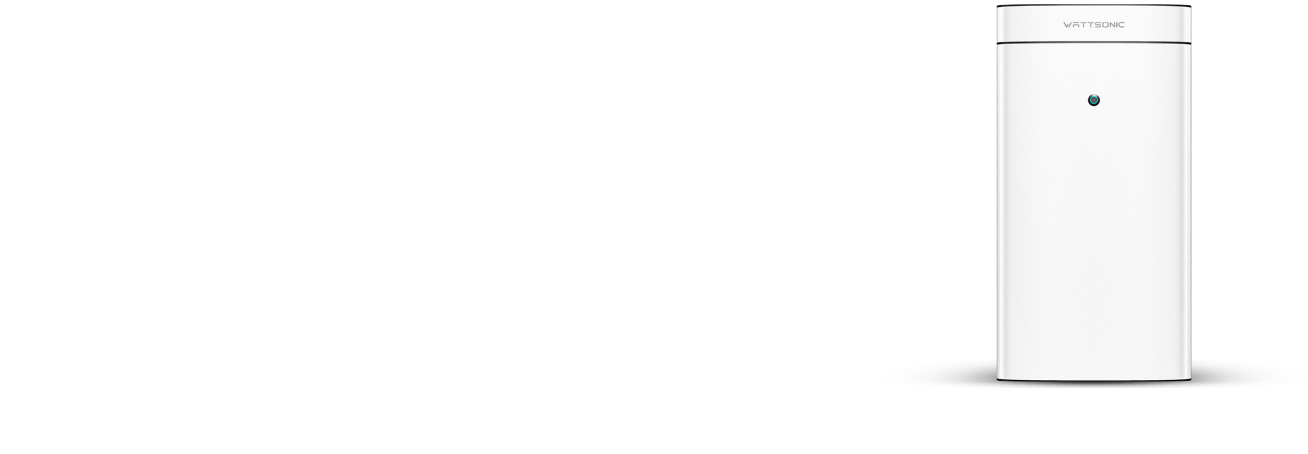

The 5kWh wall mounted/free stand LiFePO4 battery module is an excellent choice for your system. No extra BMS needed, the battery can be paralleled to realize a bigger capacity up to 25kWh. Internal technology helps to save more energy and to extend the battery have longer life-time to 10000 cycles at 90%DOD.

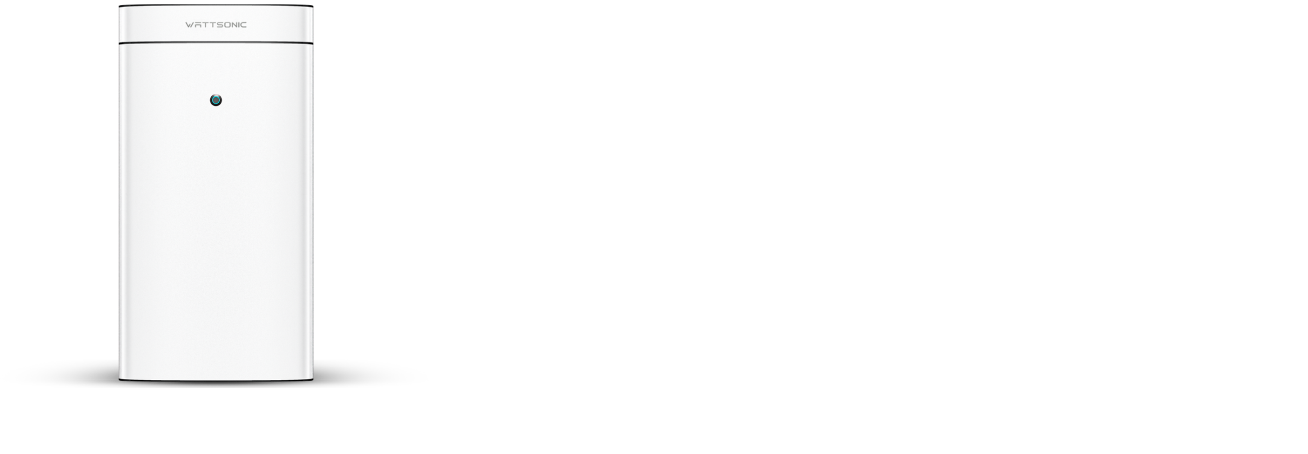

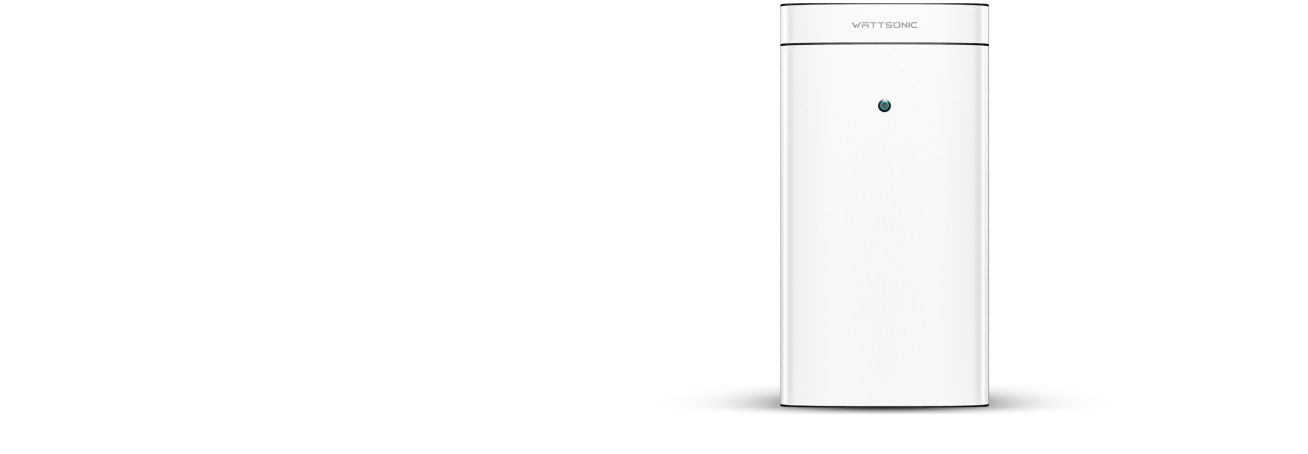

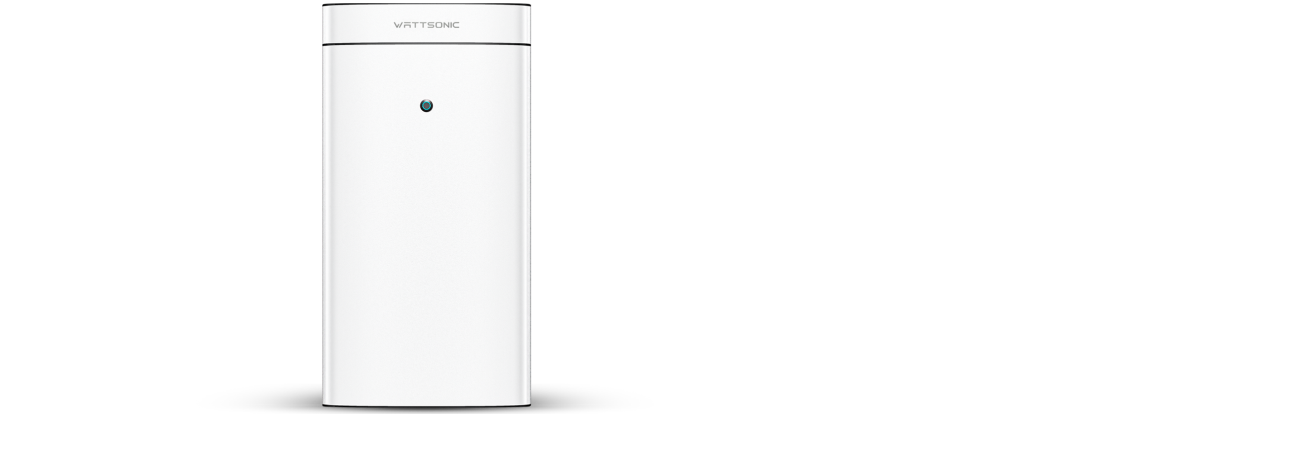

Not enough capacity?
Maximum 5 models can be paralleled.
The total capacity can be up to 25 kWh.
Master-Slave address will be auto-set based on inner BMS.

Plug and Play

Based on Wattsonic standard parallel kits(shipped with product), you can easily finish your installment by using the accessory cables.

Plug and Play

Based on Wattsonic standard parallel kits(shipped with product), you can easily finish your installment by using the accessory cables.

Positive power line
Negative power line
Communication line

High compacity,
high compatibility

Approved by world leading inverters, the integrated BMS with the battert will automatically recognize the inverter communication protocol and match it after the battery is connected to an inverter.

Inner black technologies

Normally, battery capacity will be decresing during using. But Wattsonic put great efforts in slowing down the process.

Module level auto-balancing: While Charging: Charge the battery to the same level first, then continue to charge uniformly; while discharging, discharge the battery to the same level and the discharge it together.

Extend user care and experience to next level.Together with multi functions to make the battery more durable, Wattsonic battery can realize 10,000 cycles at 90% DOD and 1C/1C continual charger& discharge. We still has 10 years long standard warranty. Our after-sales person will gladly help you if you have any problems.

10 years

standard warranty
10,000 cycles

at 90% DOD
1C/1C

continual charge and discharge

Keep safe,
from any angle

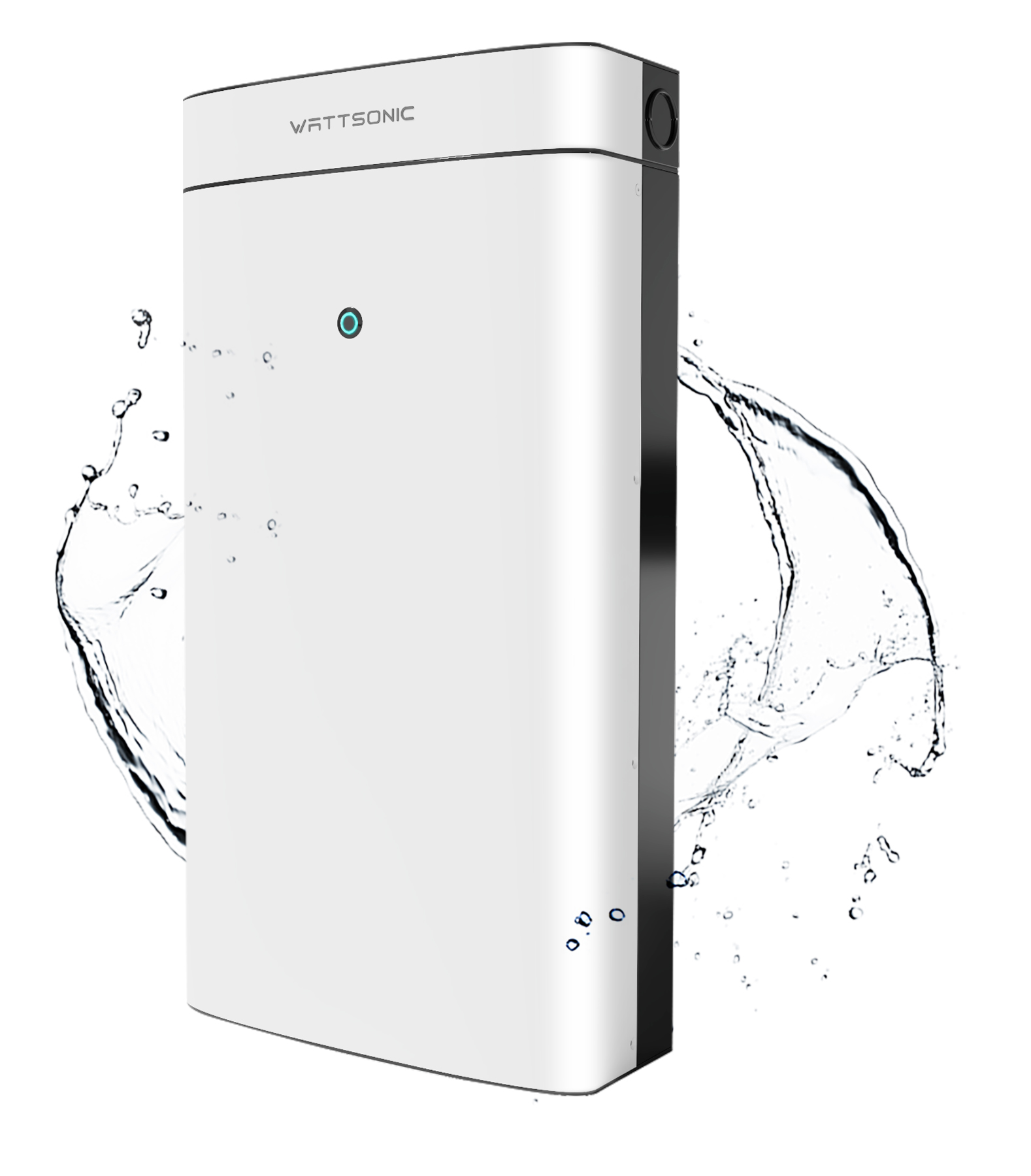

IP65 protection. Wattsonic battery passed IP65 test. Can protected from total dust ingress. And protected from low pressure water jets from any direction.

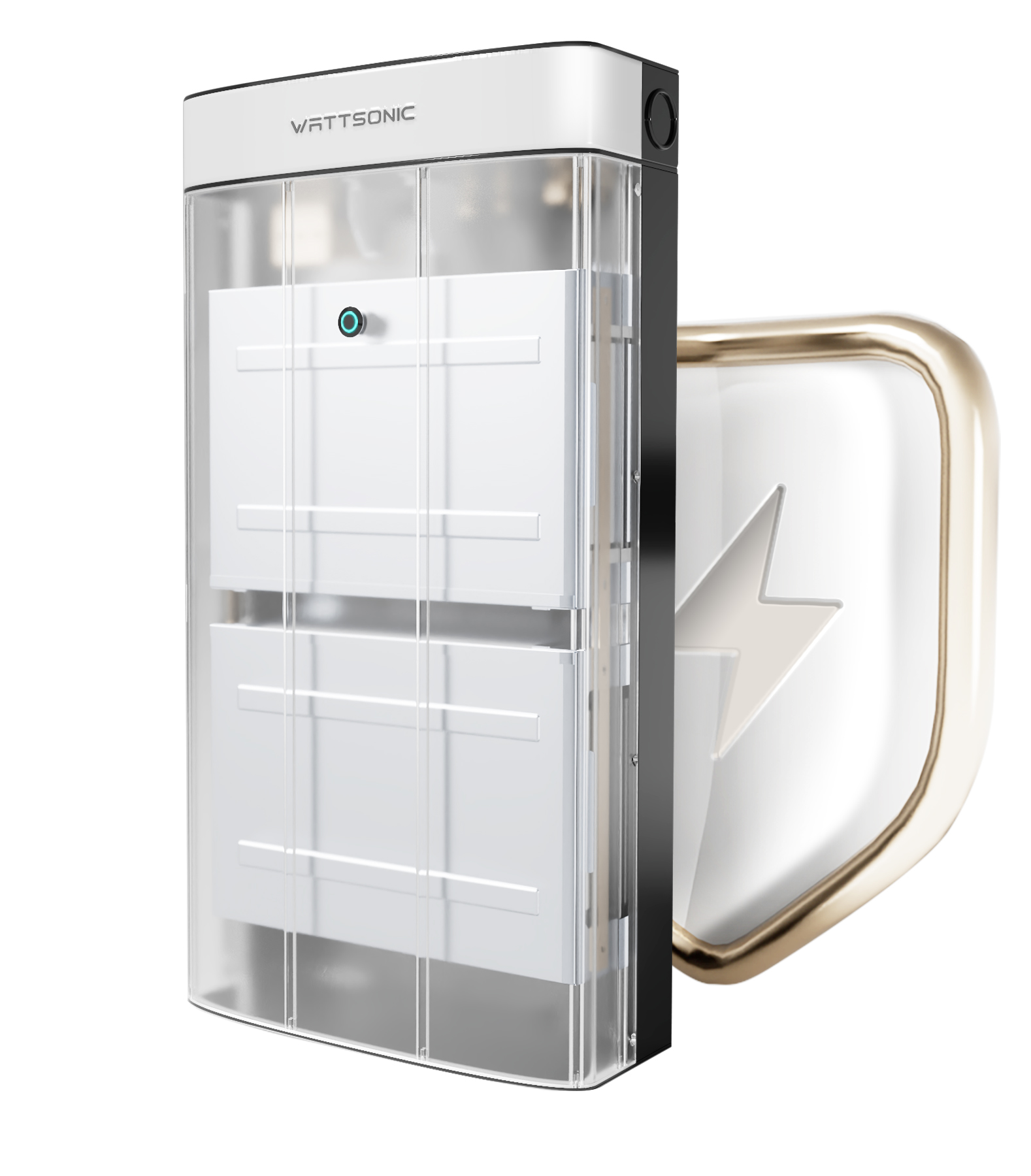

Superior LiFePO4 safety performance. LiFePO4 is a nontoxic material and doesn't give off dangerous or hazardous fumesLiFePO4 is a nontoxic material and doesn't give off dangerous or hazardous fumes, which makes it safe for you and the environment too.
Low voltage safety connection. Wattsonic Li-LV series battery is a kind of low voltage battery, which means it will be relatively safer than the high voltage product.

Extraordinary industrial design
and CMF design

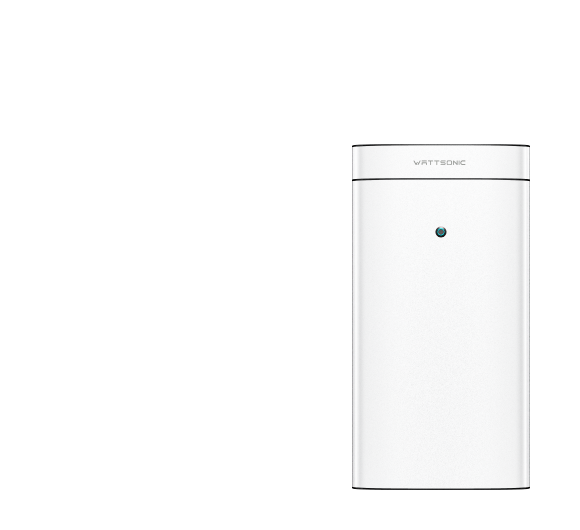

All essential data here

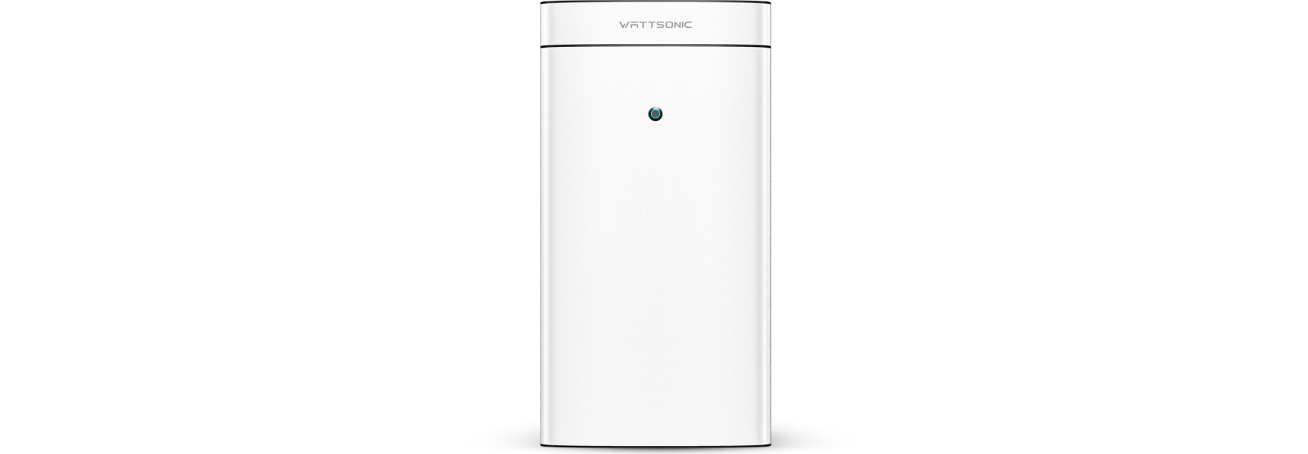

5kWh Wall Mounted/Free Stand LiFePO4 Battery Module
Total Energy [kWh]	5
Useable Energy [kWh]	4.5
Nominal Voltage [V]	51.2
Nominal Charge Current [A]	100
Nominal Discharge Current [A]	100
Enclosure Protection Rating	IP 65
Installation Mode	Wall Mounted/free stand

- 5kWh Wall Mounted/Free Stand LiFePO4 Battery Module
- Total Energy [kWh]

  5
- Useable Energy [kWh]

  4.5
- Nominal Voltage [V]

  51.2
- Nominal Charge Current [A]

  100
- Nominal Discharge Current [A]

  100
- Enclosure Protection Rating

  IP 65
- Installation Mode

  Wall Mounted/free stand

Frequently asked questions

There is a large power fluctuation on battery charge/discharge.

Check the following items:
1.Check if there is a fluctuation on load power;
2.Check if there is a fluctuation on PV power on Wattsonic Portal.If everything is ok but the problem persists, please contact Wattsonic local technical service center.
SOC changed after restart the system.

When restarting the system, SOC only depends on the battery voltage. After a whole charging and discharging process, SOC will be accurate.
